Problem:
Email is not sent even if alarm is generated. Issue while sending email.
Analysis Steps:
1. Check the email configuration in PLS_WebServerConfig.PROPERTIES located in enviroconect folder.
(webapps\enviroconect\conf\ PLS_WebServerConfig.PROPERTIES)

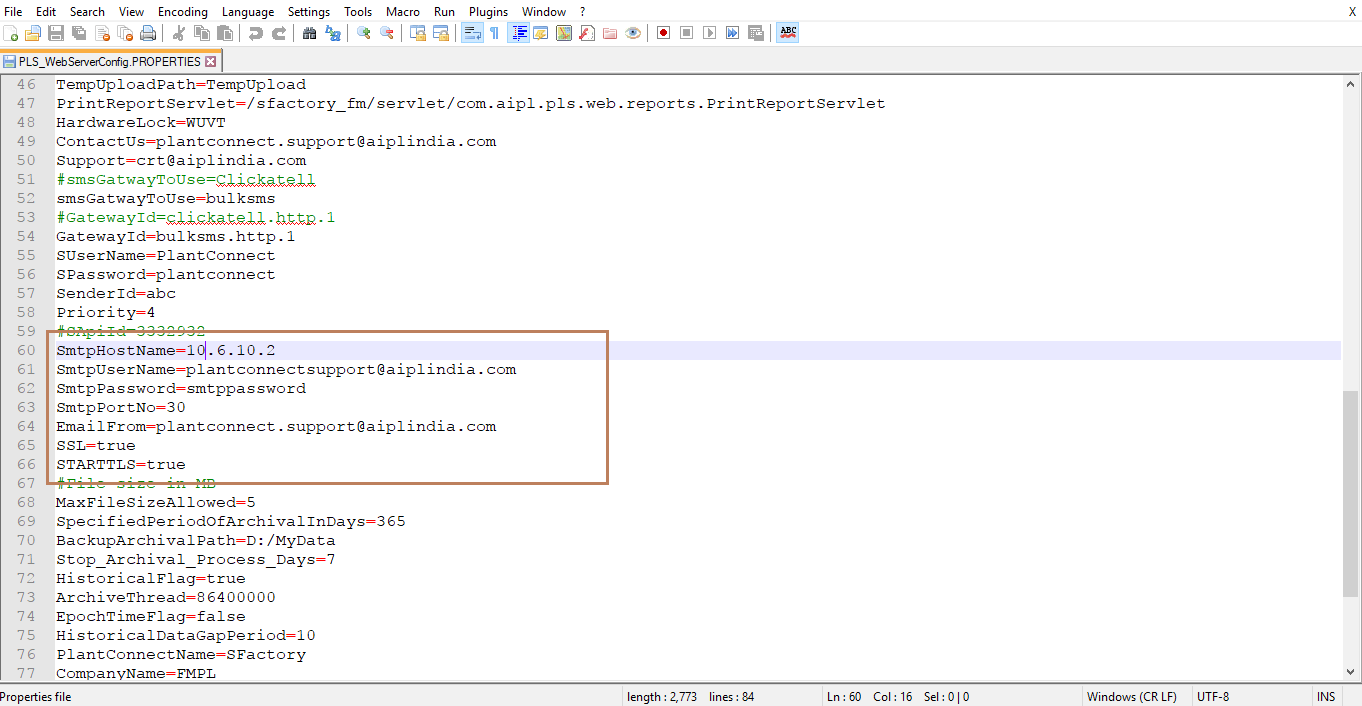

2. Check SMTP details
SmtpHostName=10.6.10.2
SmtpUserName=plantconnectsupport@aiplindia.com
SmtpPassword=smtppassword
SmtpPortNo=30
EmailFrom=plantconnect.support@aiplindia.com
SSL=true
STARTTLS=true
3. Ask customer to verify these configured details are correct.

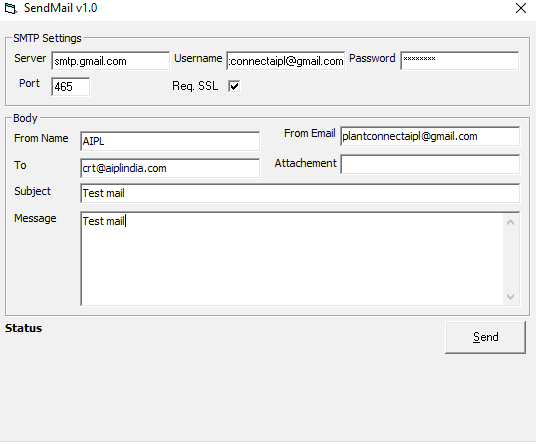

4. If the details are correct then test by 'Email test utility' as shown below:
Case 1:

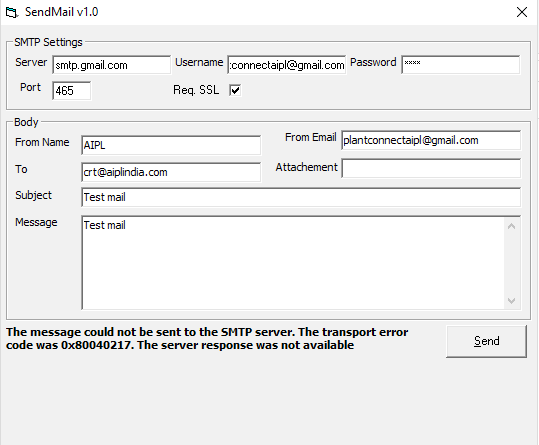

If the username or password configured is wrong then the error appears as shown below:
Root Cause:
Wrong details are configured
Solution:
Ask customer to give correct details
Case 2:

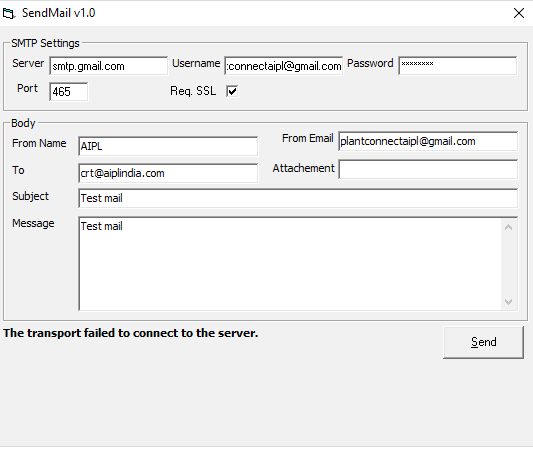

Mail sending fails and gives error as 'the transport failed to connect to the server'.
Root Cause:
If there are any security settings/ restrictions in customer's network then, this type of error occurs
Solution:
Ask customer's IT person to c allow mail through their network.
Problem:
SMS is not sent even if alarm is generated. Issue while sending SMS.
Analysis Steps:
1. Check the SMS gateway configuration in PLS_WebServerConfig.PROPERTIES located in enviroconect folder.
(webapps\enviroconect\conf\ PLS_WebServerConfig.PROPERTIES)

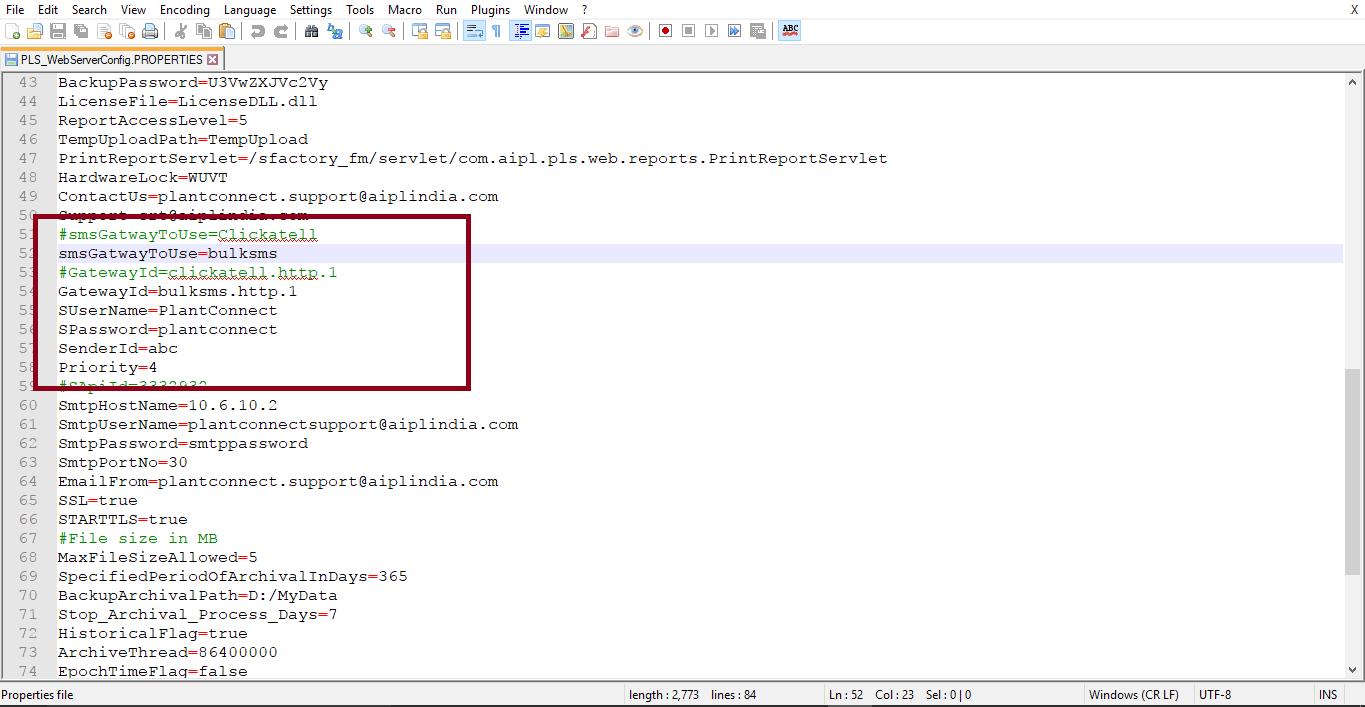

2. Check details as highlighted below
#smsGatwayToUse=Clickatell
smsGatwayToUse=bulksms
#GatewayId=clickatell.http.1
GatewayId=bulksms.http.1
SUserName=PlantConnect
SPassword=plantconnect
SenderId=abc
Priority=4
