Problem

Communication failure between DAS and server





Analysis Steps:

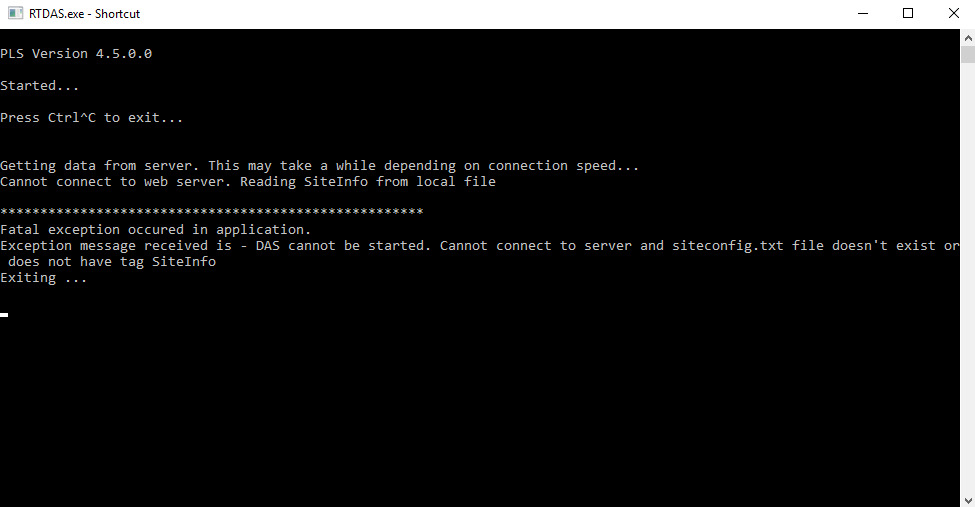

  •     Run RTDAS manually



  •     Check PLSLog file


Refer following sample cases for further details:






SR             No



Error             message




Case 1



Error message in PLSLogs seen as DAS cannot be started




Case 2



Error in opening/reading file PLSConfig




Case 3



Could not load the requested DLL

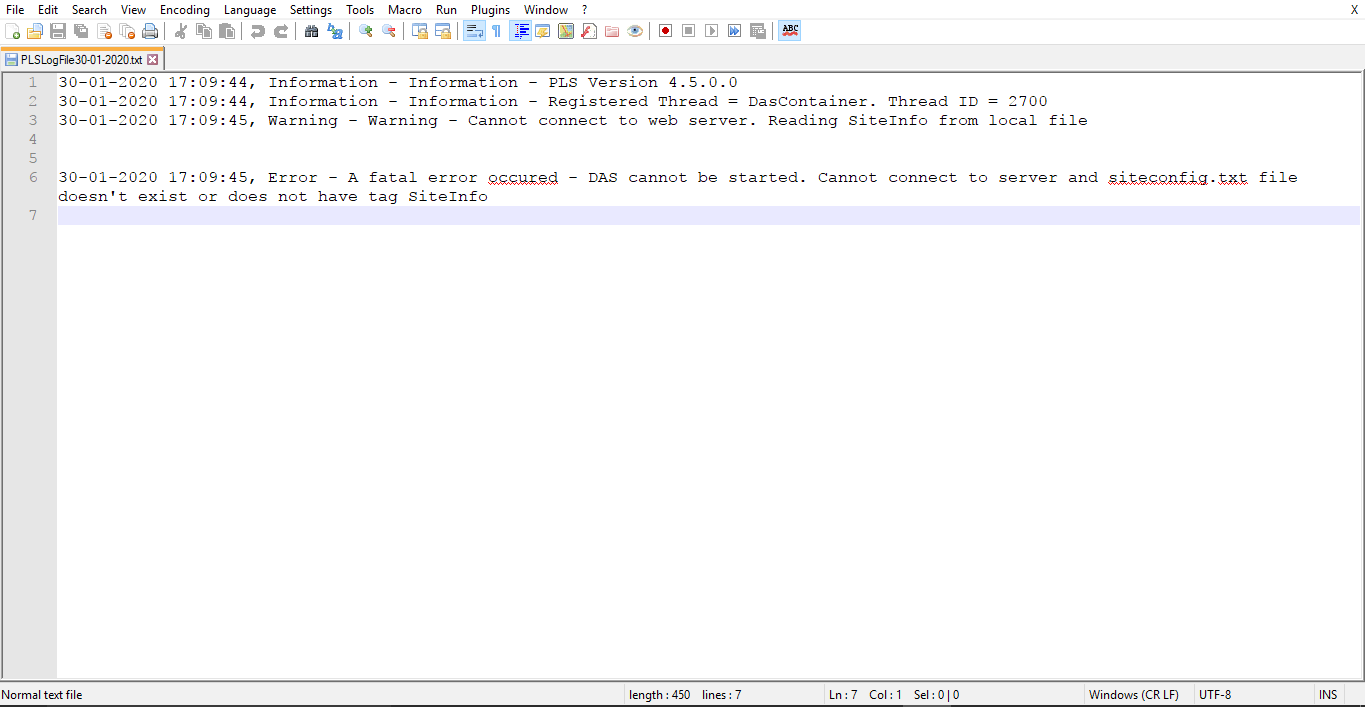

Case1: In PLSLog file, following error is found as:

‘DAS cannot be started. Cannot connect to server and siteconfig file doesn’t exist…...’











Root cause:

  1.

  2.     If server is on cloud and internet     connection is not proper of PC/DATCon on which RTDAS is installed     then RTDAS cannot communicate with server.



  3.     If server and RTDAS is on the     different PC/DATCon but are in same network. And if port 8080     connection is not enabled from server PC.


Solution:

  1.

  2.     Make sure internet connection is     proper, test by ping command from PC/DATCon. Ping google(8.8.8.8) or     server IP. If not then contact IT person of customer.



  3.     Check if port is enabled in     firewall, if not then add rule

    1.         Open Windows Firewall with command         “wf.msc”

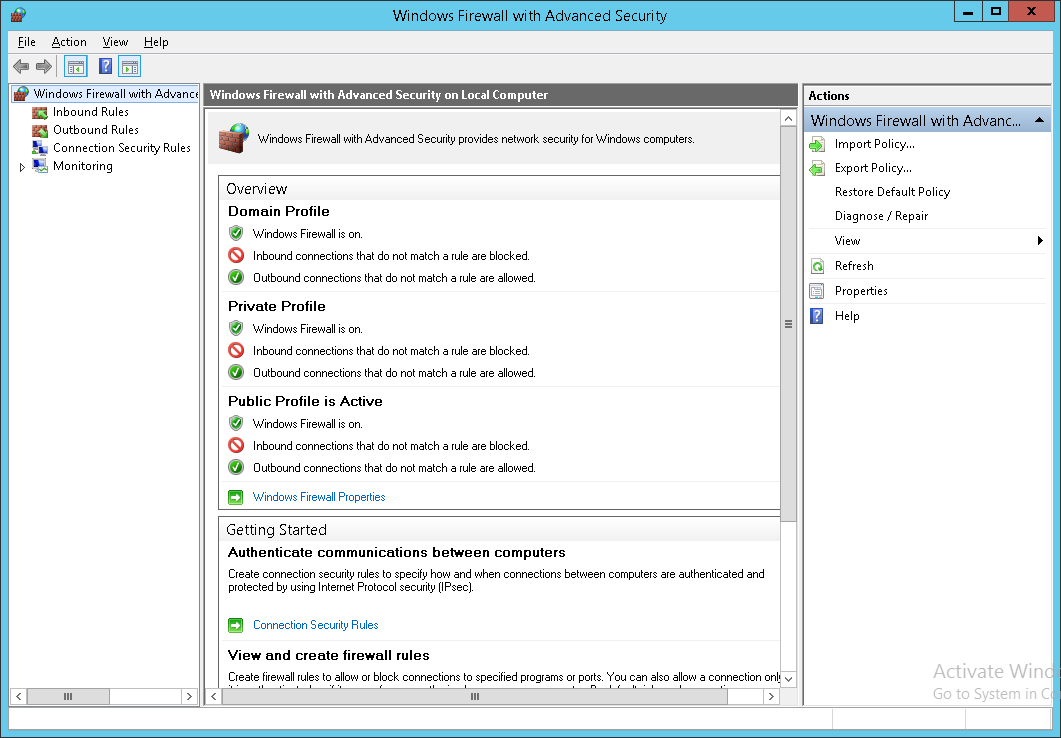

    2.         Following is Windows Firewall with         Advanced Security.

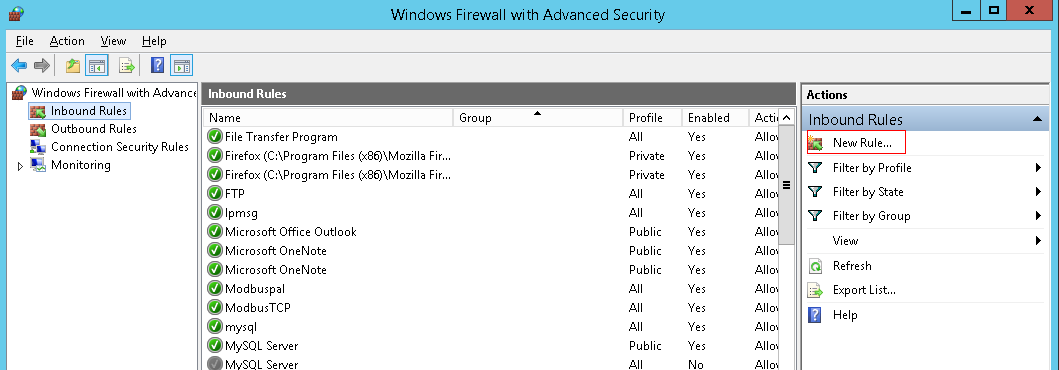

  1.         Click on Inbound rule then click         on New rule in right corner.



  1.         Add New rule as per snapshots:

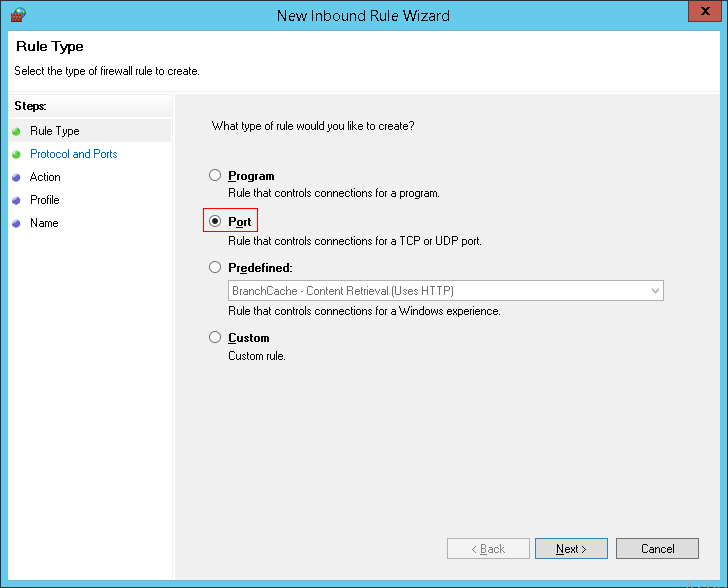

  1.         Choose Port and then click on Next.

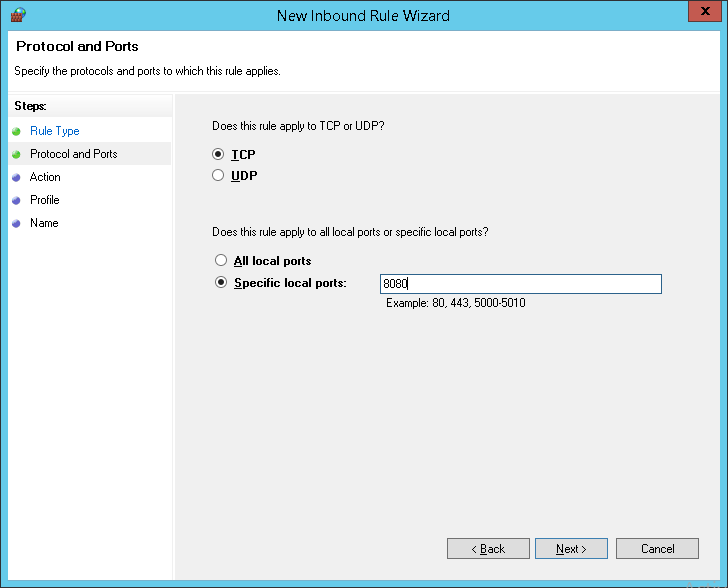

  2.         Add respective port numbers for Tomcat and FTP Server.

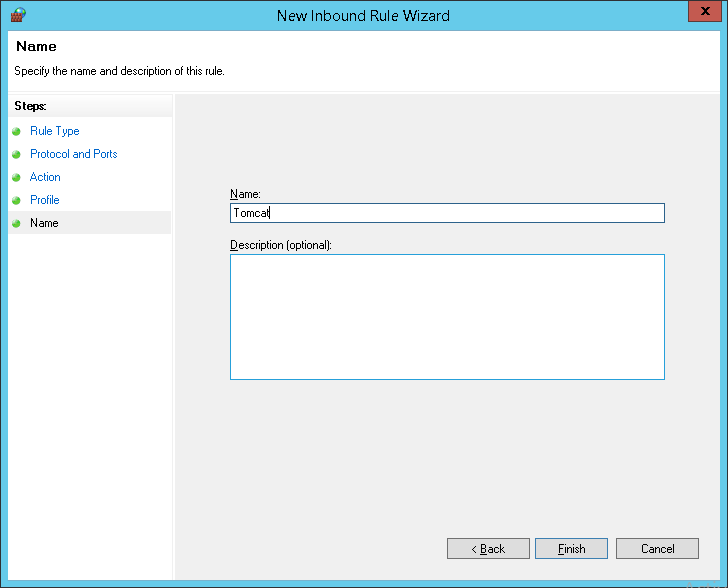

  1.  Give name to Inbound Rule for future reference.

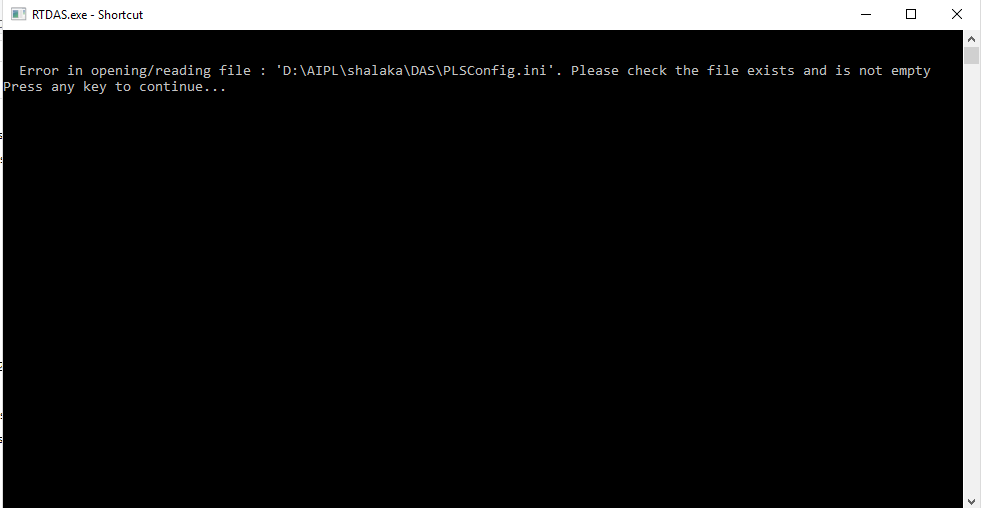

Case 2: Error in opening/reading file PLSConfig



Root cause:

PLSConfig is not present or it is empty.


Solution:

Download PLSConfig file from server for respective site and place it in EnviroConnectDAS/ DATCon folder.




Case: 3

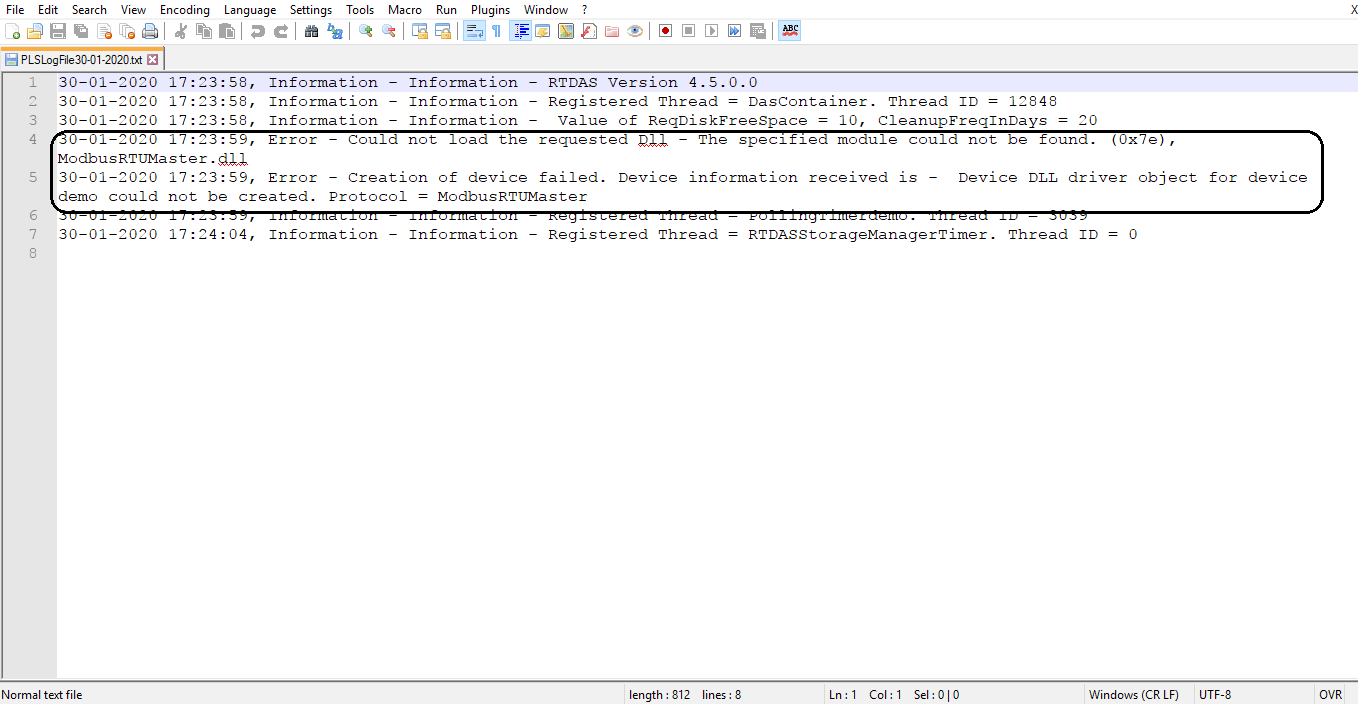

In PLSLog file, following error is found as:

‘Could not load the requested DLL.

Device creation failed. Device information received is - .......’ as shown below




Root cause:

As per the configured protocol, the same driver DLL is not present in DAS folder.


Solution:

Check which protocol is configured on server and place relative driver file.

e.g. If protocol is  ModbusRTUMaster  then ModbusRTUMaster.dll should be present in DAS folder
